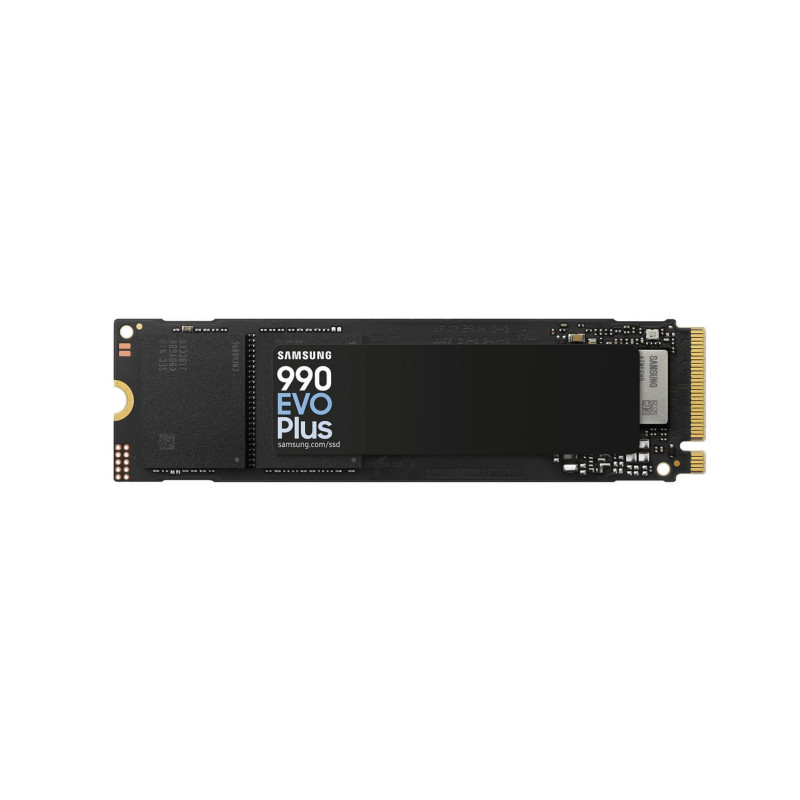

M.2 NVMe SSD: 2TB 990 EVO PLUS, PCIe Gen4/Gen5*, Read: 7250MB/s, Write: 6300MB/s, R:1000K/W:1350K IOPS, 1200 TBW

Application

Client PCs

Rated Capacity

2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Form Factor

M.2 (2280)

Interface

PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0

Dimension (WxHxD)

Max 80.15 x Max 22.15 x Max 2.38 mm

Weight

Max 9.0g Weight

Storage Memory

Samsung V-NAND TLC

Controller

Samsung in-house Controller

Cache Memory

HMB(Host Memory Buffer)

TRIM Support

Supported

S.M.A.R.T Support

Supported

GC (Garbage Collection)

Auto Garbage Collection Algorithm

Encryption Support

AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

WWN Support

Not supported

Device Sleep Mode Support

Yes

Sequential Read

Up to 7,250 MB/s * Performance may vary based on system hardware & configuration

Sequential Write

Up to 6,300 MB/s * Performance may vary based on system hardware & configuration

Random Read (4KB, QD32)

Up to 1,000,000 IOPS * Performance may vary based on system hardware & configuration

Random Write (4KB, QD32)

Up to 1,350,000 IOPS * Performance may vary based on system hardware & configuration

Average Power Consumption (system level)

Average: Read 4.6 W / Write 4.2 W* Actual power consumption may vary depending on system hardware & configuration

Power consumption (Idle)

Typical 60 mW * Actual power consumption may vary depending on system hardware & configuration

Power Consumption (Device Sleep)

Typical 5 mW * Actual power consumption may vary depending on system hardware & configuration

Allowable Voltage

3.3 V × 5 % Allowable voltage

Reliability (MTBF)

1.5 Million Hours Reliability (MTBF)

Operating Temperature

0 - 70 × Operating Temperature

Shock

1,500 G & 0.5 ms (Half sine)

Installation Kit

Not Available

Management SW

Magician Software for SSD management
