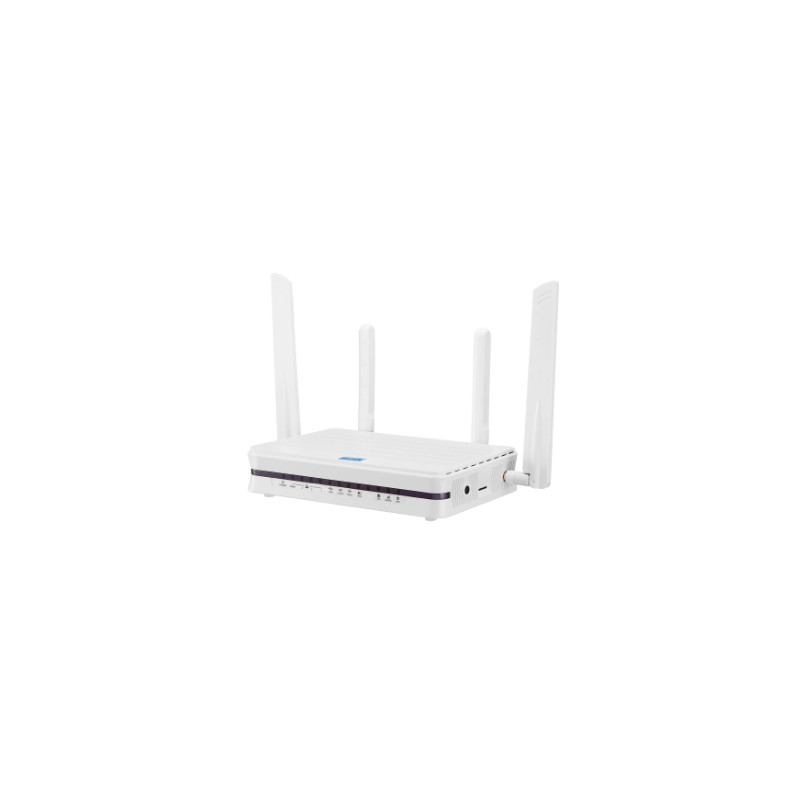

Modem/Router: VDSL2/ADSL2+ 4G LTE Embedded Wi-Fi 6 AX1500 VPN Firewall

Specifications

VDSL2/ADSL2+ Compliance

× Compliant with xDSL standard

- ITU-T G.993.2 (VDSL2)

- ITU-T G.998.4 (G.inp)

- ITU-T G.993.5 (G.vector)

- ITU-T G.992.3 (G.dmt.bis) Annex A, B, I, J, L and M.

- ITU-T G.992.5 (G.dmt.bis plus)

- Full-rate ANSI T1.413 Issue 2

- ITU-T G.992.1 (G.dmt) Annex A, B

- ITU-T G.992.2 (G.lite) Annex A, B

× Supports VDSL2 band plan: 997 and 998

× ADSL/2/2+ fallback modes

× Supports VDSL2 profiles: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a and 35b.

× Supports ATM and PTM modes

× Supports Dying Gasp

Supported Frequency Bands*3

× Embedded LTE Advanced category 18 module

× 4G LTE:

- FDD: B1/B3/B5/B7/B8/B20/B28

- TDD: B38/B40/B41

(*contact Billion team for CA information*)

Network Protocols and Features

× IPv4 or IPv4/IPv6 dual stack

× NAT, static (v4/v6) routing and RIP-1/2

× IPv6 stateless/stateful address auto-configuration

× IPv6 router advertisement

× IPv6 over PPP

× DHCPv6

× IP tunnel IPv6 in IPv4 (6RD)

× IP tunnel IPv4 in IPv6 (DS-Lite)

× Universal Plug and Play (UPnP) compliant

× Dynamic Domain Name System (DDNS)

× Virtual server and DMZ

× SNTP, DNS relay, IGMP proxy and IGMP snooping for video service

× MLD proxy and MLD snooping for video service

× Management based on IP protocol, port number and address

× Supports Bridge Grouping

Firewall

× Built-in NAT firewall

× Prevents DoS attacks including Land Attack, Ping of Death, etc

× Remote access control for web based access

× Packet filtering - port, source IP address, destination IP address

× URL content filtering - string or domain name detection in URL string

× MAC filtering

× Password protection for system management

Virtual Private Network (VPN)

× IPSec VPN tunnels

× IKE key management

× DES, 3DES and AES encryption for IPSec

× IPSec pass-through

× GRE (Generic Routing Encapsulation) tunnel

× Supports L2TP, PPTP, and L2TP over IPsec.

× Supports OpenVPN.

Quality of Service Control

× Supports the DiffServ approach

× Traffic prioritization and bandwidth management based on IP protocol, port number and address

ATM and PPP Protocols

× Compliant with xDSL standard

× ATM Adaptation Layer Type 5 (AAL5)

× Multiple protocol over AAL5 (RFC 2684, formerly RFC 1483)

× Bridged or routed Ethernet encapsulation

× VC-based and LLC-based multiplexing

× PPP over Ethernet (PPPoE)

× PPP over ATM (RFC 2364)

× Classical IP over ATM (RFC 1577)

× MAC encapsulated routing (RFC 1483 MER)

× OAM F4/F5

IPTV Applications*2

× IGMP snooping and IGMP proxy

× MLD snooping and MLD proxy

× Bridge Grouping

× Supports VLAN MUX

× Quality of Service (QoS)

Wireless LAN

× Compliant with IEEE 802.11a/b/g/n/ac/ax standards

× 2.4 GHz and 5 GHz frequency range

× Up to 1500Mbps wireless operation rate

× WPS (Wi-Fi Protected Setup) for easy setup

× Supports WPS

× 64/128 bits WEP supported for encryption

× Wireless security with WPA-PSK/WPA2-PSK

× Multiple wireless SSIDs with wireless guest access and client isolation

USB Application Server

× Storage/NAS: FTP server, Samba server (V1 & V2)

Management

× Web-based GUI for remote and local management (IPv4/IPv6)

× Firmware upgrade and configuration data upload and download via web-based GUI

× Embedded Telnet server for remote and local management

× Supports SNMP

× Supports DHCP server/client/relay

× TR-069*4 supports remote management

× Load balance

× Auto failover and failback

Hardware Specifications

Physical Interface

× WLAN: 2 external antennas

× LTE: 2 external antennas

× DSL port

× USB 2.0 port

× Ethernet: 3-port 10/100/1000M auto-crossover (MDI/MDI-X) switch

Extra one Giga Ethernet ports can be configured as

a LAN or EWAN interface for broadband connectivity

× SIM slot

× Factory default reset button

× WPS push button

×Power jack

× Power switch

Physical Specifications

× Dimensions: 9.04" x 6.10" x 1.69"

(229.5 mm x 155 mm x 43 mm)

Power Requirements

×Input: 15V DC, 2A

Operating Environment

× Operating temperature: 0× ~ 40×

× Storage temperature: -20× ~ 70×

× Humidity: 20% ~ 95% non-condensing

*Notes:

1. This is only applicable for Australia and New Zealand
2. Only upon request for Telco / ISP tender projects
3. The 5G/LTE is dependent on your local service provider
4. On request for Telco / ISP projects
5. Specifications in this datasheet are subject to change without prior notice
